AquaGuard-B1

HOW IT WORKS

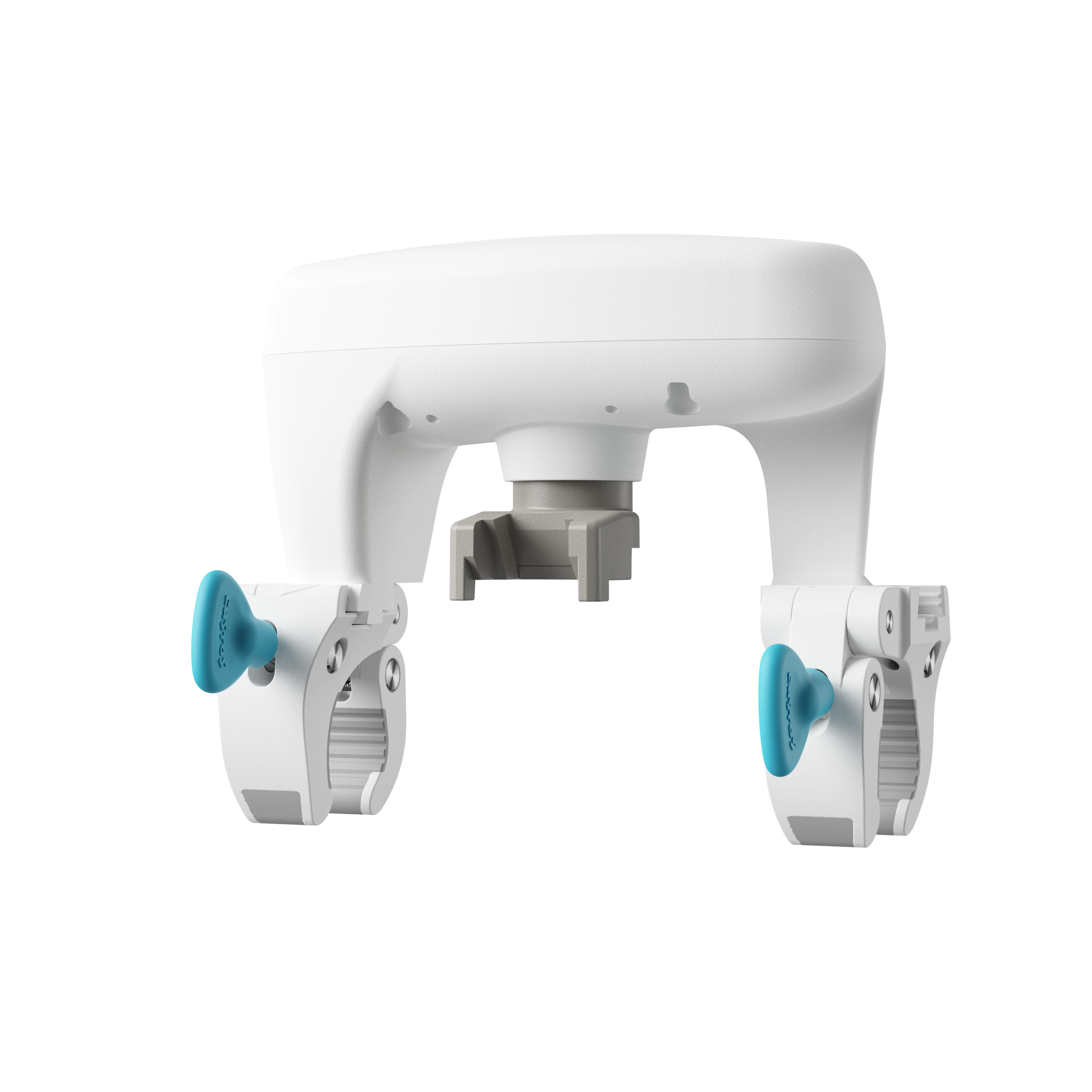

AquaGuard-B1 transforms any standard ball valve or gate valve into a smart, automatic shutoff in about three minutes. The actuator clamps onto your existing valve handle without tools, auto-calibrates to learn the valve's exact rotation range, and waits.

When any paired AquaSensor-S1 detects water — under a sink, behind the washer, near the water heater — or when the included plug-in probe detects water at the actuator itself, AquaGuard-B1 closes the main valve automatically. At the same moment, the Custos Gateway dispatches a 24/7 alert to the Custos App, an SMS, a phone call, and an email. You know exactly what happened and where, within seconds.

The patented micro-powertrain is what makes the difference on tough valves. Stiff, rusted, or decades-old valves that ordinary actuators stall on, AquaGuard-B1's 8 N·m drive handles routinely. Auto-calibration measures actual valve resistance on every install — never blindly forcing past spec, never under-turning a stiff valve.

Even if your internet connection or Custos Gateway is down, the wired plug-in probe keeps AquaGuard-B1 capable of shutting off the water on its own. Add the Smart Backup Battery and AquaGuard-B1 keeps protecting your property for up to 24 hours of blackout — exactly when winter freezes and storm-driven failures are most likely to flood a home.

PRODUCT HIGHLIGHTS

• Retrofits your existing valve in 3 minutes. No plumber, no tools, no permanent modification. Sliding clamps, versatile fittings, and the patented mounting design fit pipes from ½″ to 1¼″ out of the box, and up to 2″ with the optional Big Clamps.
• Designed for the real world. Sliding clamps and versatile fittings handle oversized valves, front elbow pipes, back elbow pipes, and vertical elbow pipes — the awkward configurations a typical actuator can't accommodate.
• Always on, even when power's out. Pair with the Smart Backup Battery for up to 24 hours of blackout protection. Even offline, AquaGuard-B1 closes your main valve automatically when a leak is detected.
• Built-in plug-in Leak Detection Probe. A wired probe ships in the box for direct leak detection at the valve location — works offline alongside any paired AquaSensor-S1 units.
• Up to 8 N·m of torque — high enough to reliably actuate stiff, rusted, or long-untouched valves that lower-torque actuators stall on.
• Patented micro-powertrain with automatic calibration. Every install learns the exact rotation range of your specific valve, so every turn is precise and valve-safe — no over-stress, no broken valve stems.
• Works on ball valves AND gate valves. Most competing smart actuators support ball valves only. AquaGuard-B1 handles both — including the older gate valves common in commercial buildings, basements, and homes built before 1990.
• IP66 + UV + thermal shielding. Built to survive outdoor installations, harsh sun, freezing winters, and sustained moisture.
• Anti-theft detachable knob design prevents the device from being removed or stolen when installed outdoors.

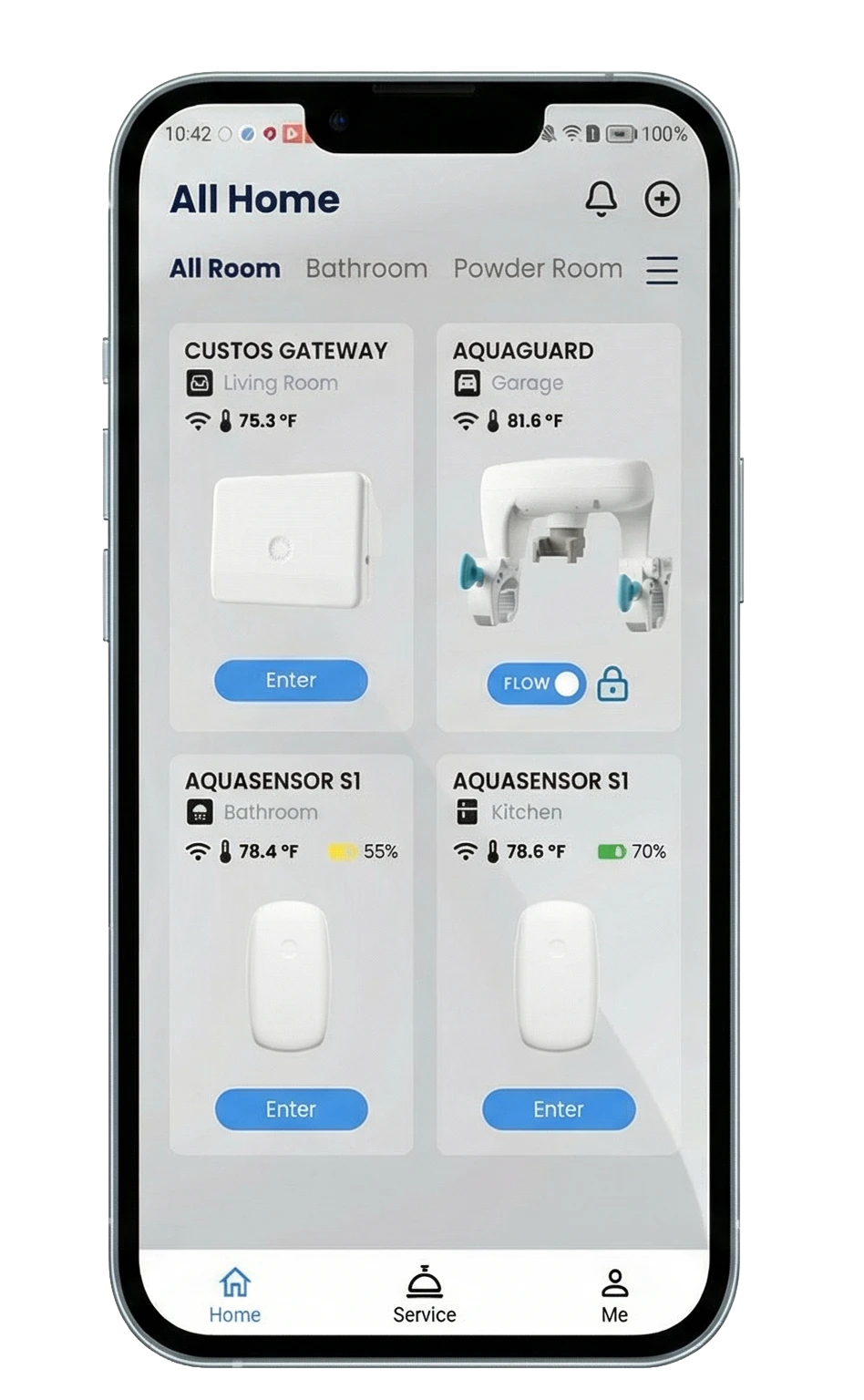

• 24/7 multi-channel alerts via Custos Gateway: push notification, SMS, phone call, and email triggered the instant a leak is detected.
• 18-month warranty + lifetime technical support.
